High Impact Resistance Zta Ceramic Rubber Backed Q235 Steel Wear Liner for Chutes

High Impact Resistance Zta Ceramic Rubber Backed Q235 Steel Wear Liner for Chutes

Overview Product Description 1.High Impact Resistance ZTA Ceramic Rubber Backed Q235 Steel Wear liner For Chutes Wear Re
Basic Info
Model NO. Rubber Composites Ceramic Liner
Application Structure Ceramic, Industrial Ceramic
Material Alumina Ceramic
Type Ceramic Plates
Ceramic Thickness (mm) 3-75mm
Alloy Steel Size (mm) Thickness: 3-10mm
Rubber Thickness (mm) Depends on The Impact Stress Expected.
Al2O3 75%
Zro2 21%
Density 4.1 g/cm3
Bending Strength 400 MPa
Compression Strength 1350MPa
Fracture Toughness 5.0 Kic
Hv Hardness 950n/mm2
Rubber Natural Rubber
Steel Q235A
Adhesive Brown Glutinous Liquid
Size Customized Designs
Bolt Customized
Transport Package Bag
Specification customized size
Trademark firstar
Origin China
HS Code 6909120000
Production Capacity 1500PCS/Month
Product Description


1.High Impact Resistance ZTA Ceramic Rubber Backed Q235 Steel Wear liner For Chutes


Wear Resistant Ceramic Rubber Composite Liner ( Rubber Ceramic Panels ) is made by a combination of wear resistant alumina ceramics (cylinders,hexagon,plates) vulcanized in resistant rubber base, some rubber plates can selectively with steel backing.The alumina ceramic liner provides exceptional resistance to wear, while the elastic property of the rubber effectively dampens the impact forces which can crack the ceramics. Rubber also helps to substantially reduce the vibrations, sounds, and the impact shock generated from impacting rocks.

2.Applications:

Raw material feeding system: belt head hopper, trolley tee bucket and feed hopper.Batching system: mixing silo, primary mixing cylinder, secondary mixing cylinder, mixing disc, pelletizing disc.Sintering material conveying system: beneficiation hopper under the vibrating screen, long-distance beneficiation hopper, silo.Dust removal and ash discharge system: dust removal pipe, elbow, tee, dust falling pipe, and tail dust removal pipe.Coking system: coke hopper.Iron-spraying coal injection system, medium speed mill: cone bucket, separation baffle, outlet pipe, pulverized coal pipe, and burner cone.Steel ball mill: outlet pipe, coarse powder separator, fine powder separator, coal powder pipe, elbow, inner shell of powder discharge machine.Steel rolling workshop: slag flushing pipeline.

3. The main benefits of the ceramic rubber composites:
- Excellent wear resitance
- Excellent anti-impact due the elastic property of the rubber
- Easy to be installation and then reduce downtime
- Reduce the sould pollution.

4. Applicatiion of equipments
- Bins
- Feeders
- Chutes
- Bunkers
- Storages

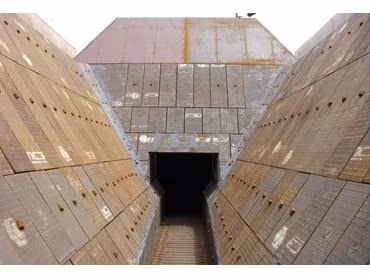

Detailed Photos

High Impact Resistance Zta Ceramic Rubber Backed Q235 Steel Wear Liner for Chutes

High Impact Resistance Zta Ceramic Rubber Backed Q235 Steel Wear Liner for Chutes

High Impact Resistance Zta Ceramic Rubber Backed Q235 Steel Wear Liner for Chutes

Product Parameters
1CeramicMaterial92%, 95%, T95%,96%, ZTA
Tiles
2RubberComponentnatural rubber, nitrile-butadiene rubber ,Flame Retardant ,others
Density~1.4g/cm3
Tensile strength at break≥15Mpa
Elongation at break ≥250%
Shore Hardness45-65
Adhesive between tile and rubber1.2-3.0 Mpa
Adhesive between rubber and equipment≥3.5 Mpa
Thermal conductivity. (normal temperature)2w/m·k
Aging period≥15 Years
Working temperature-50ºC - 200ºC
3Steel plateMaterialQ235A
Density7.85g/cm3
Thickness5-6mm
4AdhesiveAppearance Brown glutinous liquid
Solid content 20±3%
Viscosity≥2.5 Mpa
Peel strength 48h N/2.5cm≥120
Compressive strength≥850 Mpa
Working temperature-20ºC - 100ºC
Whole Plate (mm)150x300, 300x300, 450x000, 500x500, 600x450 etc.
Ceramic Size (mm)Square Tile: 10x10, 20x20, 33x33, 50x50, 100x100, 150x100,etc.
Hexagonal Tile: 12x3, 12x6, 19x7, 19x12.5, 19x25,etc.
Locking block with lock and groove: 38x38, 40x40, 30x30,etc.
Dimple Tile: 20x20 with 5 dimples, 20x30 with 18 dimples, 20x30 with
13 dimples, 20x20 with 1 semi-spherical surface
Ceramic Thickness (mm)3-75mm
Alloy Steel Size (mm)Thickness: 3-10mm
Rubber Thickness (mm)Depends on the impact stress expected.
Company Profile

ABOUT QIMINGXING

Qimingxing offer quality wear and Ant- impact ceramics, in combination with our experienced and competent staff, ensure the increased efficiency and service life of all equipments and materials to which they are applied. - Established Ultrafine Energy Efficiency Technology Research Institute - Increase lifespan of wearable parts - New improved technology and products - Minimal downtime to minimize delays in production - Variety of wear combating options available as a one stop solution - Strong focus on product innovation supported by Chinese Academy of Sciences. - Customized application techniques to suite any wear problem

High Impact Resistance Zta Ceramic Rubber Backed Q235 Steel Wear Liner for Chutes

High Impact Resistance Zta Ceramic Rubber Backed Q235 Steel Wear Liner for Chutes

Packaging & Shipping

CertificationsOTHER HOT SALE

More Abrasion ceramics products : abrasion ceramics , Alumina ceramics , wear resistant ceramics , alumina pipe liner , ceramic tube , alumina cylinder pipe , wear resistant alumina plate , abrasion ceramic tile , abrasive alumina sheet , friction plain tile , abrasion weldable tile , rubber backed ceramic liner , ceramic composite linings , alumina mosaic sheet , ceramic taper tile for pipe sleeve , ceramic ladder tile for pipe steel , engineering ceramics equipment , pre-fabricated pipe sleeve ,wear resistant bending pipe , abrasion materials

FAQ

FAQ


Q: What is your experience in your products?
A: We have 22 years experience in this industry line. We are professional manufacturer in this area.
Q: What is your MOQ?
A: The MOQ is different as per different products, for example, 1 Ton for ceramic ball.
Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first
Q: Can you provide free sample?
A: Yes, within 1kg.
Q: What is your production time?
A: We have large stock for standard products. Normally within 7-10days after receipt the deposit.
Q: What are your payment terms?
A: T/T, L/C, Western Union
